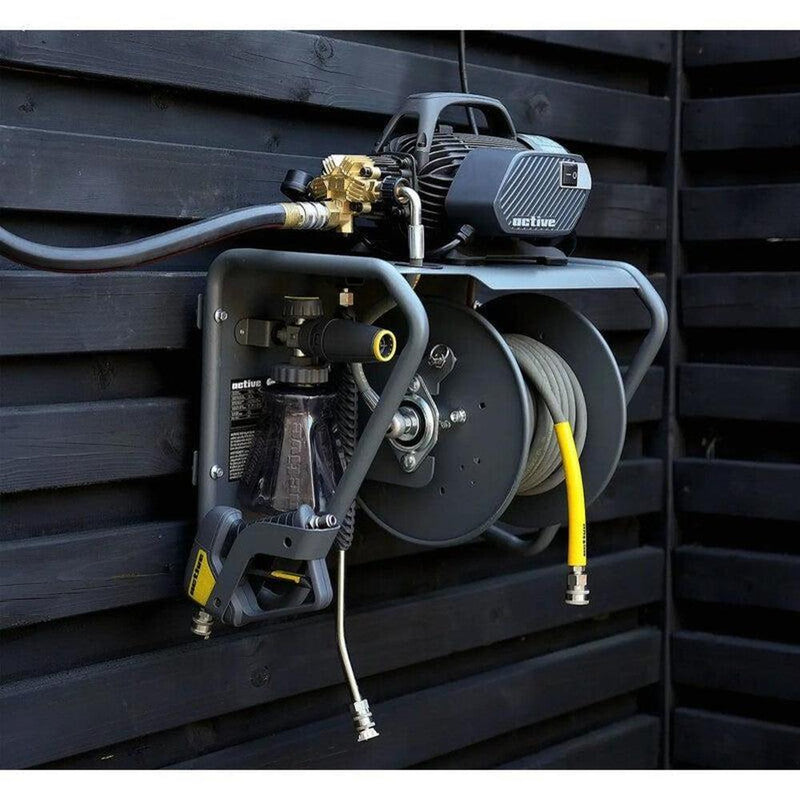

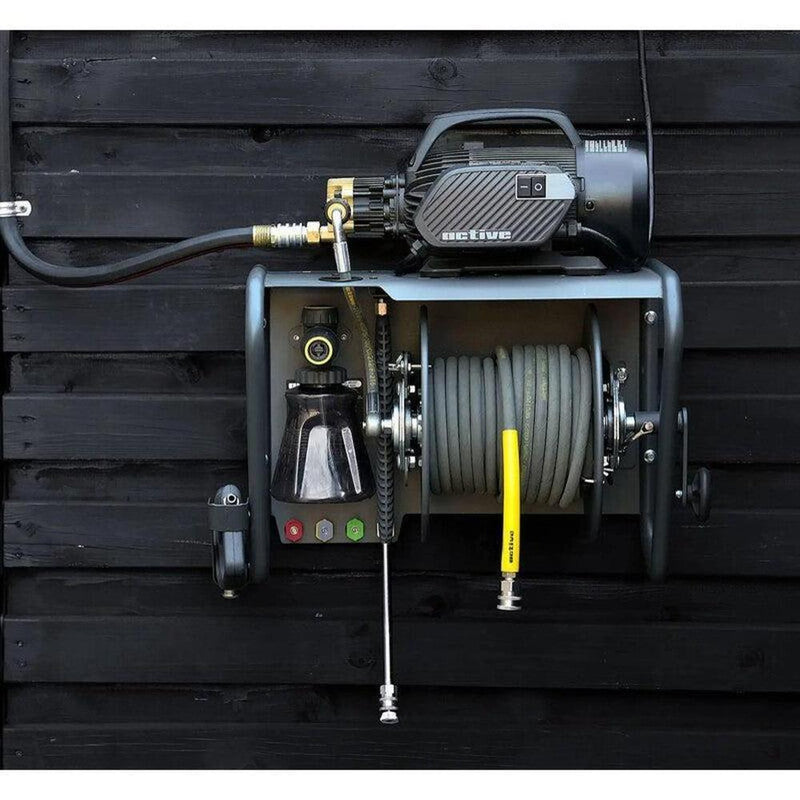

The Active Hose Reel & Wall Mount is a premium-grade storage solution designed to complement your pressure washing setup. Built for performance and durability, this heavy-duty hose reel keeps your workspace clean and organised while protecting your hose from wear, kinks, and damage.
Engineered for use with Active pressure washers and accessories, the reel is compatible with up to 30m of 3/8' and 45m of 5/16' of high-pressure hose. The smooth rewind function, integrated handle, and wall-mount bracket make setup easy while allowing quick deployment and tidy storage between uses. Crafted from corrosion-resistant materials, it’s built to stand up to frequent use and Australia's harsh outdoor conditions.
Dedicated slots for pressure washer gun, foam cannon, lance and 4 nozzles. A 16" backing plate for safe mounting on the wall and a 5/16" diameter jumper hose with an M22-14mm connector for install with the pressure washer.
The solution aims to be an integral accessory to the car wash experience in your garage, which ties in the Active pressure washer range to the active accessory bundle and completes the set of products for an integrated wash experience.
Features:
-
Wall-Mountable: Securely installs to most vertical surfaces for stable and accessible hose storage.
-
Smooth Operation: Features a fluid rewind system with comfortable hand crank for easy winding and unwinding.
-
Durable Construction: Made with corrosion-resistant materials to withstand outdoor use and frequent pressure washing.
-
Universal Fit: Designed to accommodate up to 30m of 3/8' and 45m of 5/16' of high-pressure hose, compatible with Active Pressure Washers and other systems.
-
Tangle-Free Management: Keeps your hose off the ground, preventing twists, kinks, and unnecessary damage.
-
Space-Saving Design: Compact and functional, ideal for tidy storage in tight workspaces or garages.
Complete your pressure washing setup with the Active Hose Reel & Wall Mount—a smart, durable upgrade that adds professionalism and order to your detailing environment.
Technical Specs:

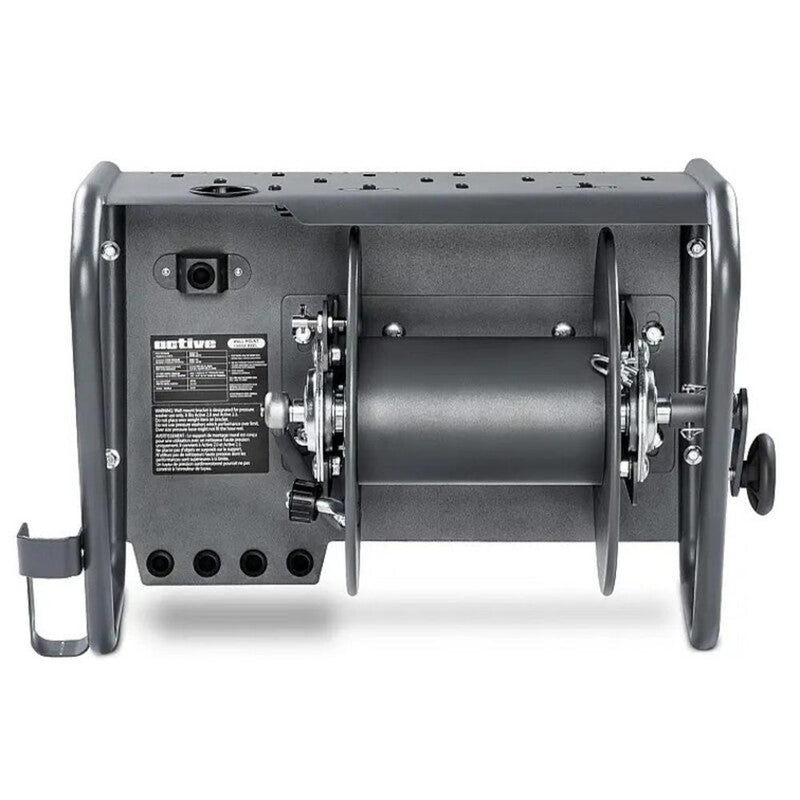

Hose Reel
- Inlet fitting: 3/8" QC female coupler
- Outlet fitting: M22x14mm
- Extension hose pre-installed
- Reel rotation lock: release lock pin before turning the reel
- Hand crank: customer need install hand crank and lock by pin
- Hose clamp: customer needs to make adjustment to secure hose
- Stainless steel (304) reel valve
Metal frame
- Hose reel is pre-installed on frame
- Customer installation is required for wall mount mode
- Customer installation required for gun holder and fasten by screw
- Customer adjustment is required for hose clip
Hardware
- 4pcs 6x30 mm screws to fasten mounting plate on the wall
- 4pcs M8x 20mm bolts to secure wall mount to mounting plate
- 2pcs M5x14 bolt to secure gun holder on frame
Accessories
- Hand crank with lock pin
- Mounting plate
- Gun holder
- Hardware kit
- Jumper / lead hose to pressure washer (M22 x 14mm - female)
Measurements:
Hose reel
- Outer disc diameter: 300 mm
- Inner barrel diameter: 120 mm
- Reel width: 200 mm
- Max. accommodate hose: 5/16" pressure hose, 100 ft
Metal cage
- Width * Depth * Height (mm): 525 x 350 x 405
- Mounting plate bolt holes layout: 16 inches x 5.6 inches x %u03A68.0mm
- Max loading capacity: 40kg
(Active accessories not included. But available to purchase separately)
Frequently Asked Questions – Active Wall Mount & Hose Reel
What additional equipment do I need to use the Active wall mount?
This kit is optimised for the Active 2.0 and 2.3 pressure washers and accessories, but it can store any washer with M22–14 mm outlets. For an M22–15 mm washer, you’ll need a separate M22–15 jumper hose. Any accessory with a 1/4" male plug (foam cannon, lance, nozzle) can be parked in the accessory mounts.
Can this kit be used with non-Active pressure washers?
Yes. While optimised for Active 2.0/2.3, the included jumper hose terminates in M22–14 mm. To use with an M22–15 mm washer, purchase a compatible M22–15 jumper hose.
Can the wall mount and hose reel be used with the Active VE52/VE56?
Yes, but you will need a separate M22–15 mm to 3/8" adapter so the hose is compatible with the VE52/VE56 outlet.
What is the warranty policy and do I need to register?
The hose reel and wall mount combo includes a 2-year warranty and requires registration. Keep your proof of purchase, store name, and order ID for support.
